Air Conditioning Unit Gree Wall Split Air System Hot Or Cold Wall Floor Mounted

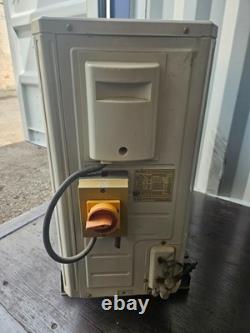

The Gree GWH24KG-K3DNA5AG/O is a 22,000 BTU outdoor unit, designed for high-efficiency cooling and heating. Operating Voltage: 220-240V (Single-phase AC). Compressor LRA (Locked Rotor Amps): 41A. Note: This is the maximum current the compressor draws momentarily when starting up from a dead stop. It is a critical figure for sizing circuit breakers or assessing if a generator or inverter can handle the initial startup surge.
Power Consumption (What it draws from the mains). The label differentiates between standard power input and "Rated" (maximum/peak) input. Cooling Power Input (Standard): 1600W approx.
Heating Power Input (Standard): 1578W approx. Cooling Rated Input (Maximum): 2500W (2.5 kW). Heating Rated Input (Maximum): 2600W (2.6 kW). Thermal Capacity (The heating/cooling output). Don't confuse these output wattages with the electrical power consumed above.
These numbers represent the actual thermal performance (often referred to as an "18,000 BTU" unit). Refrigerant: R410A (Charge weight: 1.25 kg).Manufacture Date: June 2011 (2011.06). Gree Split Air Conditioner Indoor Unit. Rated Voltage & Frequency: 220-240V 50Hz.
This is standard single-phase residential power used in regions like Europe, the UK, Australia, and parts of Asia/South America (it will not run on standard US 120V/60Hz power without a transformer/dedicated line). Certifications: Features the CE mark, meaning it complies with European health, safety, and environmentalModel GWH24KG-K3DNA5A/I The specific model number for this indoor unit. Manufactured Date June 2011 (2011.06) When the unit was built. Weight 15 kg The physical weight of the indoor unit alone.
